Allevi 3 Bioprinter

The bioprinter for every application.

The Allevi 3 bioprinter empowers you to recreate the body outside the body. No matter what cell line, bioink, or geometry – Allevi 3 puts the power of customization in your hands.

  • Soft tissues

  • Bone and cartilage

  • Organoids (cardiac, hepatic, etc.)

  • Thin layers

  • Dental

  • Microfluidics

  • Thin Layers

  • Vasculature

  • Biomedical devices

  • Electroactive tissues

  • Disease modeling

  • Drug toxicity and efficacy testing

  • Organ-on-a-chip

  • Heart valves

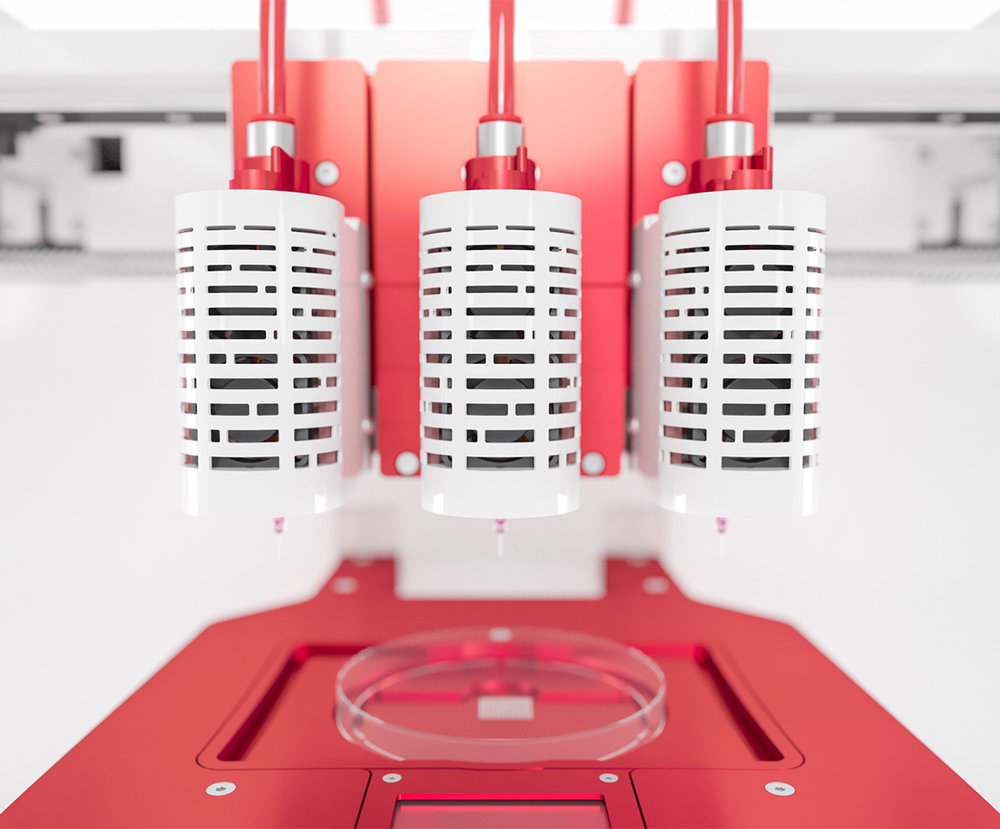

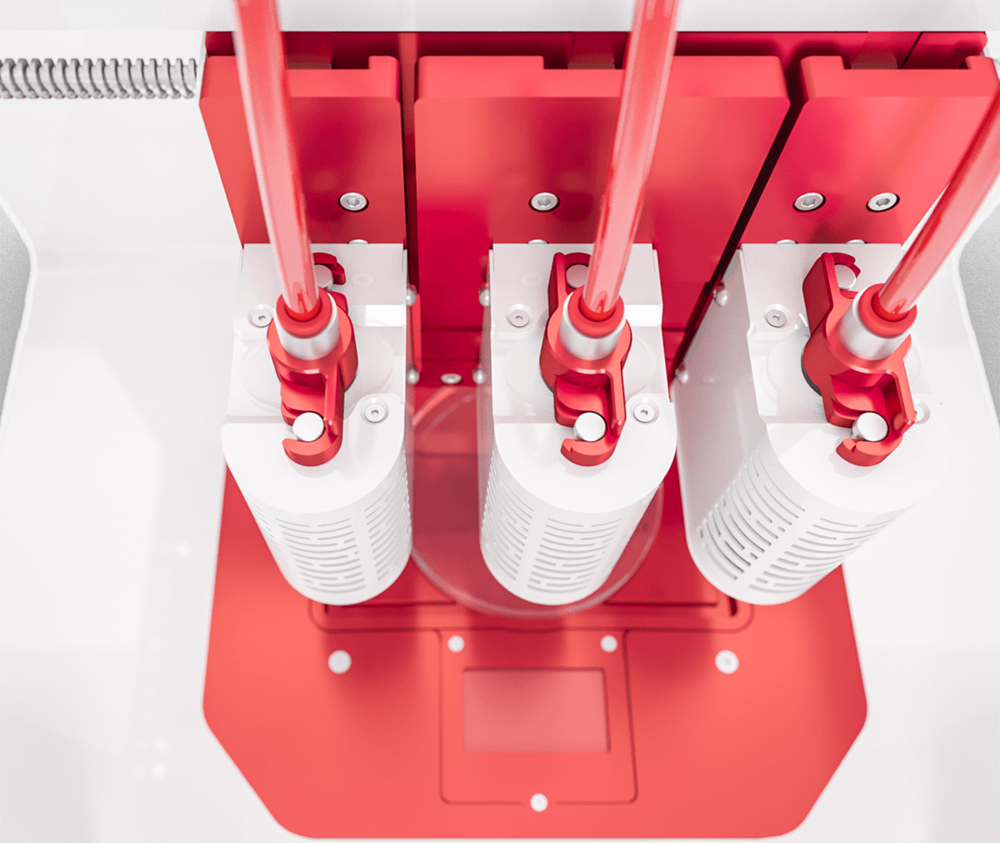

THREE EXTRUDERS

Easily and quickly print multi-cell tissues with three extruders. Incorporate vasculature into thick tissues, print supports for complex geometries or combine thermoplastics with vascularized soft tissues. One-step fabrication makes creating complex tissues simple.


TEMPERATURE CONTROL

With temperature control on each extruder from 4°C to 160°C, the Allevi 3 bioprinter is able to print a wide range of bioinks including collagen solutions, matrigel solutions, gelatin methacrylate, alginate, graphene, carbohydrate glass, polycaprolactone (PCL), and PLGA – just to name a few.


AUTO CALIBRATED & HEATED BED

Gone are the days of manually calibrating your extruder. Simply press calibrate and let the Allevi 3 bioprinter do all of the work. The print bed has temperature control from RT-60°C to keep cells viable for longer print sessions and can hold petri dishes, well plates and even glass slides.

PHOTOCURING

With the Allevi 3 bioprinter you can choose to cure bioinks in either visible or ultra-violet light. The extruders house two separate LEDs in the ranges of 365nm and 405nm. Best of all – you are able to adjust light intensity from 0 to 20 mW/cm².

FUTURE PROOF

The Allevi 3 bioprinter’s extruders and bed plate are interchangeable to ensure that your device evolves with your work and future developments in bioprinting technology.

ENGINEERED FOR MAXIMUM VIABILITY

Pneumatic extrusion causes minimal shear stress on cells while enabling unlimited design freedom. Linear rails ensure 1 micron precision on X,Y & Z axes.

OPEN SYSTEM

We know how important it is for you to have complete control over every parameter. The Allevi 3 accepts 5mL luer lock syringes and is compatible with each of the bioink kits offered on our platform. Fill your syringe with your own proprietary bioink or follow an easy-to-use Allevi Ink Kit – it’s completely up to you.

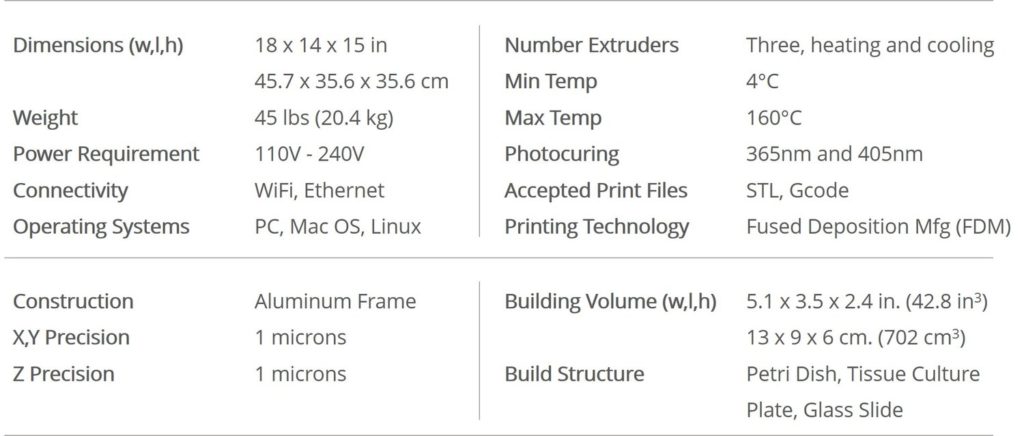

TECH SPECS
